Product Overview
The ChillWaves Brass Compression Tube Fitting, 3/16" OD x 3/16" OD Compression Union Connector(10-PACK) brings clarity to common scenarios with thoughtfully designed build choices and satisfying experience. Featuring Brass, measuring 3/16" OD x 3/16" OD, weighing 0.17 kg, available in Yellow. Notable features include size 16 and 16 tube, contributing to its versatile character.
Key Features

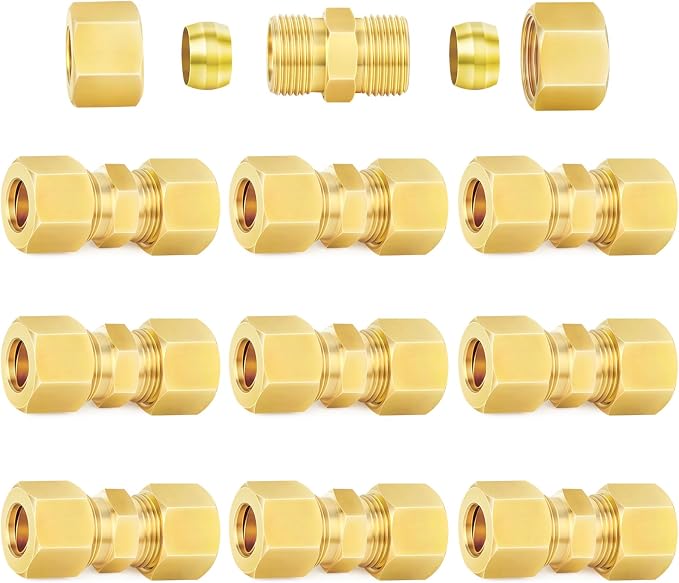

- SIZE - 3/16" Tube OD x 3/16" Tube OD, Compression Tube Fitting mainly consists of a fitting body with a 24 degree tapered hole, a ferrule with a sharp inner edge, and a nut for compression.
- MATERIAL - Made of high-quality brass, with strong wear and corrosion resistance, high compressive strength, durability, low magnetic permeability and high temperature ductility.
- USE - Suitable for oil, gas, water and other non-corrosive pipeline systems, temperature and pressure resistance, good sealing and repeatability, no need for welding and flaring tools, easy disassembly, installation and maintenance, etc.
- WORKING PRESSURE & TEMPERATURE - 1200PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)
- WORKING PRINCIPLE - Compression Tube Fitting is to compress the ferrule by thread interlocking, and the two ends of the inner diameter of the ferrule tightly wrap the tube due to radial shrinkage, which plays a sealing role and realizes the sealing and tightening effect between the joint and the tube.
Why Choose the VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting
The ChillWaves Brass Compression Tube Fitting, 3/16" OD x 3/16" OD Compression Union Connector(10-PACK) represents a value-driven take on pipe fittings, with size 16 that supports practical use consistently.
Best For
The VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting is best suited for: oil.
Quick Summary
The VisittheCHILLWAVES ChillWaves Brass Compression Tube Fitting is a Pipe Fittings product by VisittheCHILLWAVES. Size: 3/16" OD x 3/16" OD. Material: Brass. Brand: ChillWaves. Color: Yellow. Connector Type: Union. Price: $21.98.
Product Specifications
| Specification | Details |
|---|---|
| Size | 3/16" OD x 3/16" OD |
| Material | Brass |
| Brand | ChillWaves |
| Color | Yellow |
| Connector Type | Union |
| Thread Size | 3/16" |
| Exterior Finish | Brass |
| Thread Type | NPT |
| Item Weight | 0.17 kg |
| Number of Pieces | 10 |
